New Transit Custom
Transit Custom Sport Double SWB Cab 2.0L EcoBlue Diesel 8AT FWD
VAN
Transit Custom Sport Double SWB Cab 2.0L EcoBlue Diesel 8AT FWD
There are currently no Bonus Offers available for Transit Custom Sport Double SWB Cab 2.0L EcoBlue Diesel 8AT FWD. Please contact us to discuss your options.
- Choose your colour
- COLOUR: Frozen White

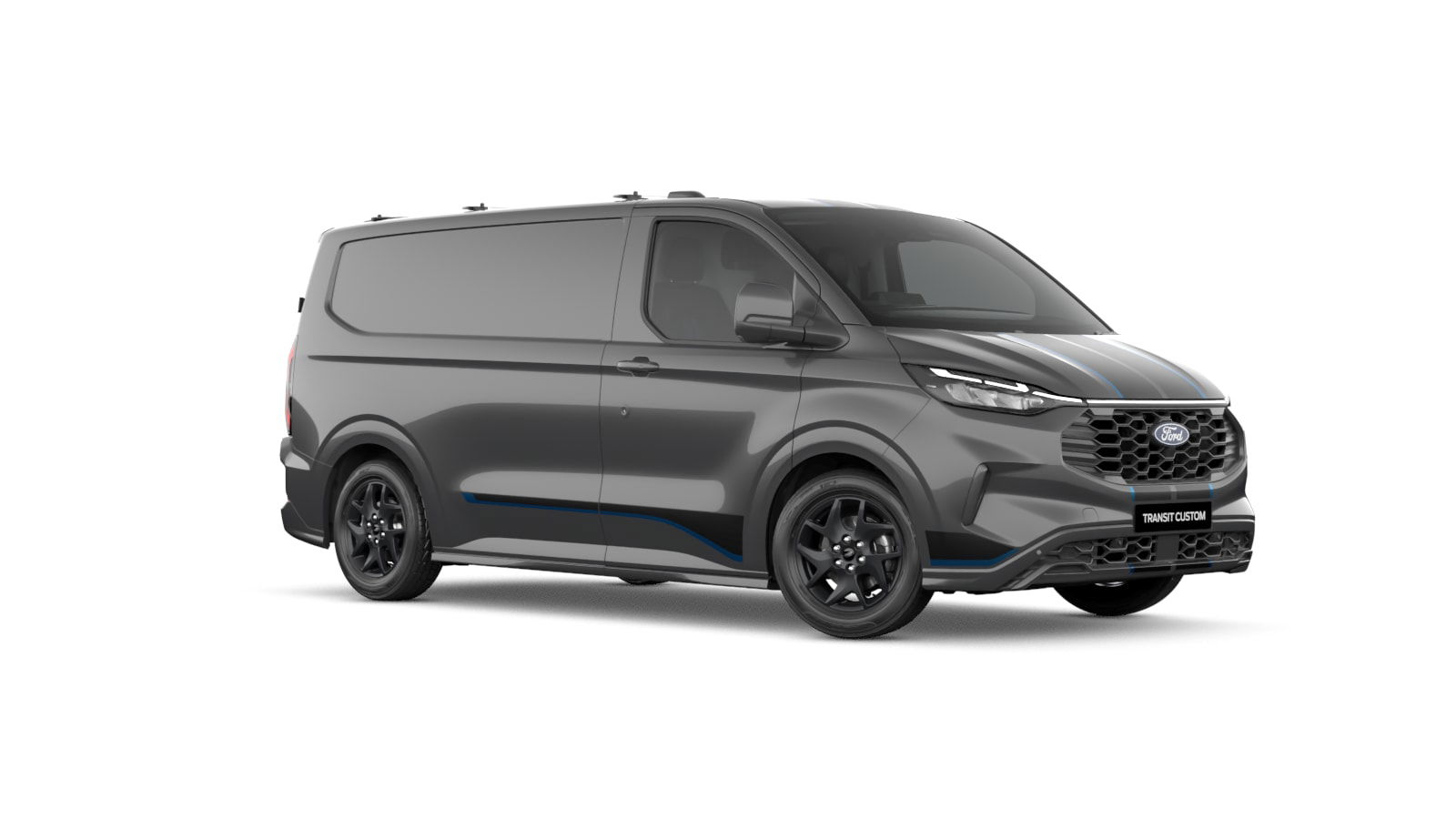

- COLOUR: Magnetic + $700

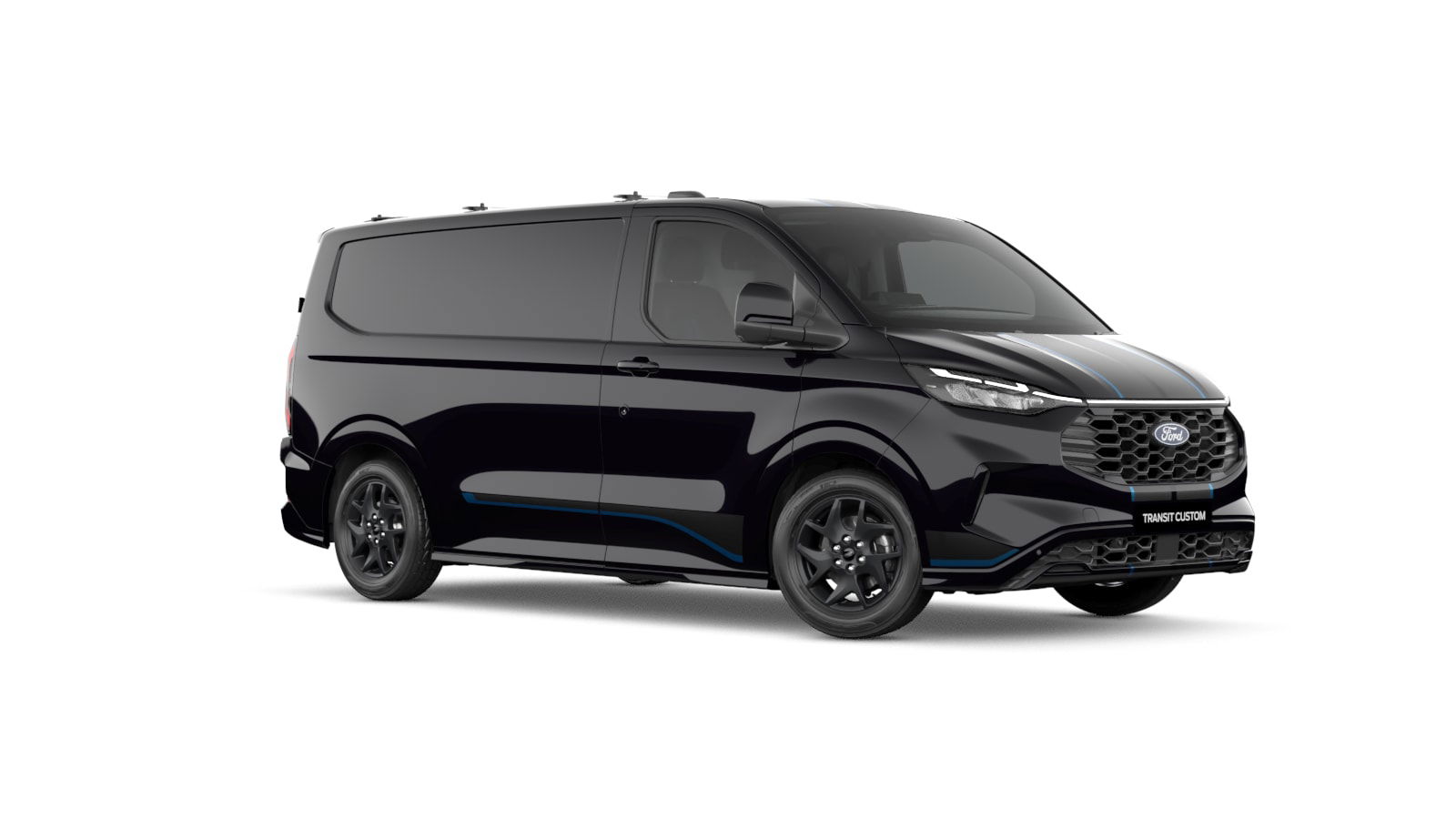

- COLOUR: Agate Black + $700

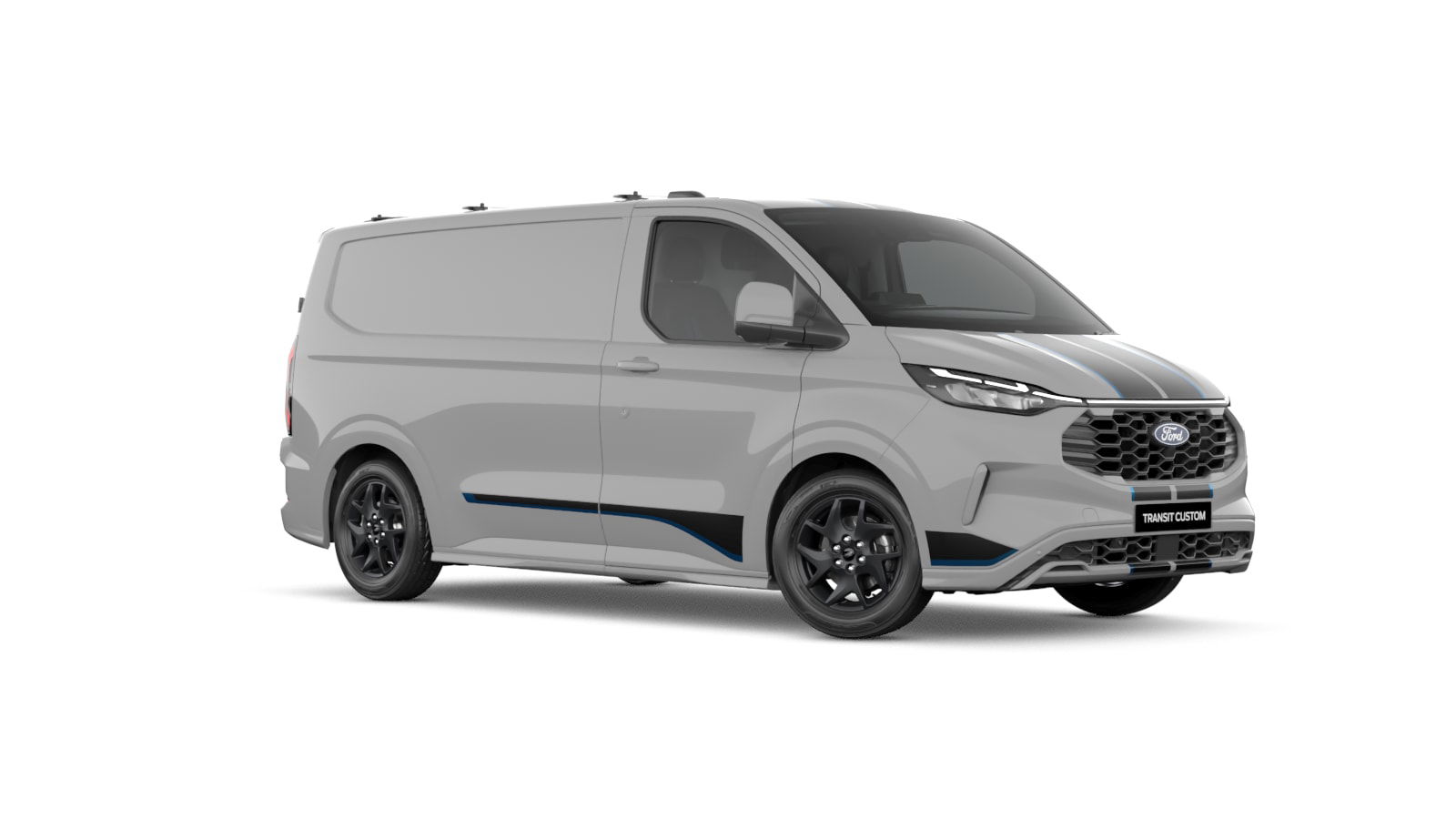

- COLOUR: Moondust Silver + $700
- COLOUR: Digital Aqua Blue + $700
- COLOUR: Grey Matter + $700
Key FeaturesEngine & Transmission
- 2.0L EcoBlue Diesel Engine with eight-speed automatic transmission
- Maximum Power: 125kW
- Maximum Torque: 390Nm
Exterior Dimensions (mm)1
- Overall Length: 5050
- Overall Width with mirrors: 2275
- Overall Width with folded back mirrors: 2148
- Overall Height at Kerb Weight3: 1990
- Wheelbase: 3100
- Front of vehicle to front wheel centre: 958
- Rear of vehicle to rear wheel centre: 992
- Width – Side Door Opening: 1030
- Height – Side Door Opening: 1301
- Width – Rear Door Opening: 1400
- Height – Rear Door Opening: 1316
Cargo Dimensions (mm)1
- Width – Load Space Between Wheel Arches: 1392
- Height – Load Space Floor to Roof: 1427
- Height – Rear Loading Height at kerb weight3: 572
- Length – Load Space Maximum (Up to Bulkhead): 2602
- Length – Load Space Maximum via Load Through Hatch to Passenger Under Seat Stowage: 3050
- Maximum Load Volume (with Bulkhead) (cu.m)2: 5.8
Vehicle Masses (kg)
- Axle Plated Mass (Front / Rear): 1550 / 1700
- Gross Combined Mass: 5525
- Gross Vehicle Mass: 3025
- Minimum Kerb Weight2: 2002
- Kerb Weight2: 2157
- Maximum Payload at Minimum Kerb Weight2: 1023
- Maximum Payload at Kerb Weight2: 868
Wheels & Tyres
- 17-inch Multi-Spoke Alloy in Matte Black
- 16-inch Steel Spare Wheel
Exterior Lighting
- Automatic Dusk Sensing Headlights
- Automatic High Beam Control
- LED Daytime Running Lights
- LED Headlights
- Rear Fog Lamps
Stowage & Carrying
- Full Width Metal Bulkhead with Window and Load Through Hatch
- Kerbside Sliding Load Door (LHS)
- Load Area Protection Kit – Full Height Walls & Moulded Floor
- Load Area Tie Down Loops (6)
- Rear Twin Barn Door with Windows (Wide Opening)
- Ultra Bright LED Load Area Compartment Lights
Comfort & Convenience
- 3 seats: Single Driver and Dual Passenger Seat
- 10-Way Driver Seat Power Adjustment including Lumbar Adjustment
- Driver and Passenger (Outboard) Heated Front Seats
- Keyless Start
- Keyless Entry
Audio & Communications
- 13-inch Landscape Colour Multi-Function Touchscreen
- 12-inch Driver Cluster with 7-inch Colour Digital Instrument Cluster with Configurable Display
- SYNC® 34 with Voice-Activated Controls
- Embedded Modem compatible with FordPass5
- Built-In Satellite Navigation with one year of Connected Navigation Services included6
- Wireless Apple CarPlayTM & Android AutoTM7
- Wireless Charging8
Driver Assistance9
- Adaptive Cruise Control10
- Blind Spot Monitoring System with Rear Cross Traffic Alert
- Exit Warning
- Hill Launch Assist
- Lane Keeping Aid with Lane Departure Warning
- Pre-Collision Assist with Autonomous Emergency Braking (AEB) and Intersection Assist11
- Front and Rear Sensors
- Rear View Camera - 180 Degree Split View
- Reverse Brake Assist12
Towing
- 2,500kg Maximum Braked Towing Capacity13,14
- The Ford Licensed Accessory towing equipment, including a towbar frame, is not currently available for sale and is expected to be available for sale in October 2024. Consult your Ford Dealer for availability
Regular Production Options15
- Dual Side Load Doors (No Windows)
- Prestige Paint
- Rear Liftgate
Enquire on your New Transit Custom - EnquireComplete this form to send your enquiry to Westernport Ford. Or call (03) 8840 4300Your Details
Confirm & Send
- First Name:
- Second Name:
- Email Address:
New Transit Custom
Showing 4 New Transit Custom
Key Features
Sport LWB Double Cab (2024.50MY)
Engine & Transmission
- 2.0L EcoBlue Diesel Engine with eight-speed automatic transmission
- Maximum Power: 125kW
- Maximum Torque: 390Nm
Exterior Dimensions (mm)1
- Overall Length: 5450
- Overall Width with mirrors: 2275
- Overall Width with folded back mirrors: 2148
- Overall Height at Kerb Weight3: 1985
- Wheelbase: 3500
- Front of vehicle to front wheel centre: 958
- Rear of vehicle to rear wheel centre: 992
- Width – Side Door Opening: 1030
- Height – Side Door Opening: 1301
- Width – Rear Door Opening: 1400
- Height – Rear Door Opening: 1314
Cargo Dimensions (mm)1
- Width – Load Space Between Wheel Arches: 1392
- Height – Load Space Floor to Roof: 1425
- Height – Rear Loading Height at Kerb Weight3: 569
- Length – Load Space Maximum (Up to Bulkhead): 2004
- Length – Load Space Maximum (includes Load Through Hatch): Load Through Hatch N/A on Sport LWB Double Cab
- Maximum Load Volume (with Bulkhead) (cu.m)2: 4.3
Vehicle Masses (kg)
- Axle Plated Mass (Front / Rear): 1700 / 1700
- Gross Combined Mass: 5525
- Gross Vehicle Mass: 3025
- Minimum Kerb Weight2: 2171
- Kerb Weight2: 2276
- Maximum Payload at Minimum Kerb Weight2: 854
- Maximum Payload at Kerb Weight2: 749
Wheels & Tyres
- 17-inch Multi-Spoke Alloy in Matte Black
- 16-inch Steel Spare Wheel
Exterior Lighting
- Automatic Dusk Sensing Headlights
- Automatic High Beam Control
- LED Daytime Running Lights
- LED Headlights
- Rear Fog Lamps
Stowage & Carrying
- Full Width Moulded Bulkhead with Window
- Dual Side Load Doors with Pop Out Latch style Windows
- Load Area Protection Kit – Half Height Walls & Moulded Floor
- Load Area Tie Down Loops (6)
- Rear Twin Barn Door with Windows (Wide Opening)
- Ultra Bright LED Load Area Compartment Lights
Comfort & Convenience
- 5 Seats: Single Driver and Passenger 1st row Seats. Fixed 2nd row with 3 seats
- 10-Way Driver Seat Power Adjustment including Lumbar Adjustment
- Driver and Passenger Heated Front Seats
- Keyless Start
- Keyless Entry
Audio & Communications
- 13-inch Landscape Colour Multi-Function Touchscreen
- 12-inch Driver Cluster with 7-inch Colour Digital Instrument Cluster with Configurable Display
- SYNC® 34 with Voice-Activated Controls
- Embedded Modem compatible with FordPass5
- Built-In Satellite Navigation with one year of Connected Navigation Services included6
- Wireless Apple CarPlayTM & Android AutoTM7
- Wireless Charging8
Driver Assistance9
- Adaptive Cruise Control10
- Blind Spot Monitoring System with Rear Cross Traffic Alert
- Exit Warning
- Hill Launch Assist
- Lane Keeping Aid with Lane Departure Warning
- Pre-Collision Assist with Autonomous Emergency Braking (AEB) and Intersection Assist11
- Front and Rear Sensors
- Rear View Camera - 180 Degree Split View
- Reverse Brake Assist12
Towing
- 2,500kg Maximum Braked Towing Capacity13,14
- The Ford Licensed Accessory towing equipment, including a towbar frame, is not currently available for sale and is expected to be available for sale in October 2024. Consult your Ford Dealer for availability
Regular Production Options15
- Prestige Paint
- Rear Liftgate
Disclaimer
This is an estimated drive away price only and is not intended as a formal quotation or offer. For a confirmed drive away price quotation and to check stock availability, please contact your Ford Dealer. The estimated drive away price is based on a vehicle being garaged in the postcode listed and on the owner being a 'rating one' driver aged 40 with a good driving record. The estimated drive away price includes, 12 months registration, 12 months compulsory third party insurance (CTP), an estimated Dealer delivery charge, stamp duty and other applicable statutory charges. Your actual drive away price may differ depending on your individual circumstances, choice of insurer, options and accessories selected. Statutory charges are current on the day you are using this build and price tool. Please consult with an authorised Ford dealer for the most up to date information about features, specifications, prices, optional equipment and availability before you decide to place an order.
Key Features
Engine & Transmission
- 2.0L EcoBlue Diesel Engine with eight-speed automatic transmission
- Maximum Power: 125kW
- Maximum Torque: 390Nm
Exterior Dimensions (mm)1
- Overall Length: 5050
- Overall Width with mirrors: 2275
- Overall Width with folded back mirrors: 2148
- Overall Height at Kerb Weight3: 1990
- Wheelbase: 3100
- Front of vehicle to front wheel centre: 958
- Rear of vehicle to rear wheel centre: 992
- Width – Side Door Opening: 1030
- Height – Side Door Opening: 1301
- Width – Rear Door Opening: 1400
- Height – Rear Door Opening: 1316
Cargo Dimensions (mm)1
- Width – Load Space Between Wheel Arches: 1392
- Height – Load Space Floor to Roof: 1427
- Height – Rear Loading Height at kerb weight3: 572
- Length – Load Space Maximum (Up to Bulkhead): 2602
- Length – Load Space Maximum via Load Through Hatch to Passenger Under Seat Stowage: 3050
- Maximum Load Volume (with Bulkhead) (cu.m)2: 5.8
Vehicle Masses (kg)
- Axle Plated Mass (Front / Rear): 1550 / 1700
- Gross Combined Mass: 5525
- Gross Vehicle Mass: 3025
- Minimum Kerb Weight2: 2002
- Kerb Weight2: 2157
- Maximum Payload at Minimum Kerb Weight2: 1023
- Maximum Payload at Kerb Weight2: 868
Wheels & Tyres
- 17-inch Multi-Spoke Alloy in Matte Black
- 16-inch Steel Spare Wheel
Exterior Lighting
- Automatic Dusk Sensing Headlights
- Automatic High Beam Control
- LED Daytime Running Lights
- LED Headlights
- Rear Fog Lamps
Stowage & Carrying
- Full Width Metal Bulkhead with Window and Load Through Hatch
- Kerbside Sliding Load Door (LHS)
- Load Area Protection Kit – Full Height Walls & Moulded Floor
- Load Area Tie Down Loops (6)
- Rear Twin Barn Door with Windows (Wide Opening)
- Ultra Bright LED Load Area Compartment Lights
Comfort & Convenience
- 3 seats: Single Driver and Dual Passenger Seat
- 10-Way Driver Seat Power Adjustment including Lumbar Adjustment
- Driver and Passenger (Outboard) Heated Front Seats
- Keyless Start
- Keyless Entry
Audio & Communications
- 13-inch Landscape Colour Multi-Function Touchscreen
- 12-inch Driver Cluster with 7-inch Colour Digital Instrument Cluster with Configurable Display
- SYNC® 34 with Voice-Activated Controls
- Embedded Modem compatible with FordPass5
- Built-In Satellite Navigation with one year of Connected Navigation Services included6
- Wireless Apple CarPlayTM & Android AutoTM7
- Wireless Charging8
Driver Assistance9
- Adaptive Cruise Control10
- Blind Spot Monitoring System with Rear Cross Traffic Alert
- Exit Warning
- Hill Launch Assist
- Lane Keeping Aid with Lane Departure Warning
- Pre-Collision Assist with Autonomous Emergency Braking (AEB) and Intersection Assist11
- Front and Rear Sensors
- Rear View Camera - 180 Degree Split View
- Reverse Brake Assist12
Towing
- 2,500kg Maximum Braked Towing Capacity13,14
- The Ford Licensed Accessory towing equipment, including a towbar frame, is not currently available for sale and is expected to be available for sale in October 2024. Consult your Ford Dealer for availability
Regular Production Options15
- Dual Side Load Doors (No Windows)
- Prestige Paint
- Rear Liftgate
Disclaimer
This is an estimated drive away price only and is not intended as a formal quotation or offer. For a confirmed drive away price quotation and to check stock availability, please contact your Ford Dealer. The estimated drive away price is based on a vehicle being garaged in the postcode listed and on the owner being a 'rating one' driver aged 40 with a good driving record. The estimated drive away price includes, 12 months registration, 12 months compulsory third party insurance (CTP), an estimated Dealer delivery charge, stamp duty and other applicable statutory charges. Your actual drive away price may differ depending on your individual circumstances, choice of insurer, options and accessories selected. Statutory charges are current on the day you are using this build and price tool. Please consult with an authorised Ford dealer for the most up to date information about features, specifications, prices, optional equipment and availability before you decide to place an order.
Key Features
Engine & Transmission
- 2.0L EcoBlue Diesel Engine with eight-speed automatic transmission
- Maximum Power: 125kW
- Maximum Torque: 390Nm
Exterior Dimensions (mm)
- Overall Length: 5450
- Overall Width with mirrors: 2275
- Overall Width with folded back mirrors: 2148
- Overall Height at Kerb Weight4: 1961
- Wheelbase: 3500
- Front of vehicle to front wheel centre: 958
- Rear of vehicle to rear wheel centre: 992
- Width - Side Door Opening: 1030
- Height - Side Door Opening: 1301
- Width - Rear Door Opening: 1400
- Height - Rear Door Opening: 1314
Cargo Dimensions (mm)1
- Width - Load Space Between Wheel Arches: 1392
- Height - Load Space Floor to Roof: 1433
- Height - Rear Loading Height2: 531 - 585
- Length - Load Space Maximum (Up to Bulkhead): 3002
- Length - Load Space Maximum (includes Load Through Hatch): 3450
- Maximum Load Volume (with Bulkhead) (cu.m)3: 6.8
Vehicle Masses (kg)
- Axle Plated Mass (Front / Rear): 1700 / 1850
- Gross Combined Mass: 5725
- Gross Vehicle Mass: 3225
- Maximum Kerb Weight4: 2002
- Maximum Payload5: 1223
Wheels & Tyres
- 16-inch Steel Road Wheels with Wheel Covers
- 16-inch Spare Wheel
Exterior Lighting
- Automatic Headlights
- Automatic High Beam Control
- Daytime Running Lights
- LED Headlights
- Rear Fog Lamps
Stowage & Carrying
- Full Width Metal Bulkhead with Window and Load-Through Hatch
- Kerbside Load Door
- Load Area Protection Kit – Full Height Walls & Moulded Floor
- Load Area Tie Down Loops (8)
- Rear Twin Barn Door with Window (180 degree opening)
- Ultra Bright LED Load Area Compartment Lights
Comfort & Convenience
- 3 seats: Single Driver and Dual Passenger Seat
- 8-Way Driver Seat Manual Adjustment
- Driver and Passenger (Outboard) Heated Front Seats
- Keyless Start
Audio & Communications
- 13-inch Landscape Colour Multi-Function Touchscreen
- 12-inch Driver Cluster with 7-inch Colour Digital Instrument Cluster with Configurable Display
- SYNC® 46 with Voice-Activated Controls
- Embedded Modem compatible with FordPass7
- Built-In Satellite Navigation with one year of Connected Navigation Services included8
- Wireless Apple CarPlayTM & Android AutoTM9
- Wireless Charging10
Driver Assistance11
- Adaptive Cruise Control12
- Blind Spot Monitoring System with Rear Cross Traffic Alert
- Exit Warning
- Hill Launch Assist
- Lane Keeping Aid with Lane Departure Warning
- Pre-Collision Assist with Autonomous Emergency Braking (AEB) and Intersection Assist13
- Front and Rear Sensors
- Rear View Camera - 180 Degree Split View
- Reverse Brake Assist14
Towing
- 2,500kg Maximum Braked Towing Capacity15,16
- Towing equipment, including towbar, not currently available—expected for sale between June-September 2024
Regular Production Options17
- Dual Side Load Doors (No Windows)
- Prestige Paint
- Special Vehicle Options (SVO) Paint
Disclaimer
Pre-production vehicle shown. Specifications and features on production model may vary. Transit Custom Trend Short Wheelbase and Long Wheelbase Van available to order. Additional wait times may apply.
1. Load Area Protection Kit may impact cargo area dimensions and capacities.
2. Height dimensions show a range from min. to max. of a fully laden, lowest payload vehicle to unladen highest payload vehicle. All dimensions (shown in mm) are approximate, are subject to manufacturing tolerances, do not include additional equipment and should be confirmed before fitting any accessories or otherwise relying on this value.
3. Maximum load volume method simply measures the volume of a fine-grained material such as sand or rice which can be deposited into the loadspace.
4. Kerb Weight includes the vehicle with a full tank of fuel, without occupants, luggage or cargo and with all standard equipment. Additional weight of optional features must be taken into account when calculating kerb weight.
5. Subject to State and Territory regulations. Payload is defined as the Gross Vehicle Mass minus the kerb weight. Payload is the maximum combined value of occupants, cargo, added options, added structures and tow ball download (when towing). GVM must not be exceeded.
6. Don’t drive distracted. Use voice operated systems where possible and don’t use handheld devices while driving. Some features may be locked out while the vehicle is in gear. Not all SYNC features are compatible with all phones. SYNC screen appearance and functionality may change over time due to software updates.
7. Use of FordPass is subject to the FordPass Terms and Privacy Policy available on ford.com.au/fordpass and requires a compatible mobile device, internet access and software (including software updates from time to time). FordPass functionality and appearance may change over time due to software updates. You are responsible for internet access, mobile network data and voice call services required for your use of the FordPass App on your mobile device, including associated fees. The FordPass App and FordPass Connect modem can only work when both are connected to the telecommunications network. The Transit Custom 2023.75MY contains a FordPass Connect Modem which will function on the 3G, 4G and 5G telecommunications networks. Ford cannot guarantee that FordPass will be in fully operating condition at all times and the FordPass App may be unavailable or particular FordPass services interrupted. Ford is not responsible for any limitations or restrictions of the telecommunications network or of your mobile device. Warning: Local laws prohibit some phone functions while driving. Check your local road rules before using these functions. Use Remote Vehicle Start and Stop responsibly and only in well ventilated areas where you are aware of your vehicle’s surroundings.
8. Connected Built-In Satellite Navigation is a Connected Service where eligible vehicles receive 1 year of service from the Ford Express New Vehicle Warranty start date, after which time the service may cease to be available or may be subject to a subscription fee. Users must have created a FordPass App account (terms apply), have fully activated the vehicle's FordPass Connect modem and have SYNC Location set to 'on' to use this feature.
9. Apple CarPlay / Android Auto requires phone with compatible version of Apple iOS / AndroidTM (as applicable), active data service, and connection cable (sold separately). SYNC® does not control Apple CarPlay/Android Auto while in use. Apple / Google and other third parties are responsible for their respective functionality. Message and data rates may apply. Apple CarPlay, Siri Eyes Free, iPod and iPhone are trademarks of Apple Inc. registered in the US and other countries. Android Auto and Google Maps are trademarks of Google Inc. Ford Applink® is available on selected SYNC® models and is compatible with select smartphone platforms. Warning: Local laws prohibit some phone functions while driving. Check your local road rules before using these functions.
10. Wireless charging only available on compatible phones.
11. Driver-assist features are supplemental and do not replace the driver’s attention, judgment and need to control the vehicle. May not operate in some driving and road conditions (including at certain speeds) or adverse weather.
12. Adaptive Cruise Control has a minimum operating speed of 30km/hr.
13. Pre-collision Assist with Autonomous Emergency Braking detects pedestrians, but not in all conditions, and can help avoid or reduce a collision. Intersection Assist does not detect all vehicles in intersection, pedestrians or cyclists. These do not replace safe driving. See Owner’s Manual for Limitations.
14. Reverse Brake Assist functions when in reverse and travelling at a speed of 2-12 km/h.
15. Maximum towing capacity braked using an appropriate aftermarket towbar and trailer brake controller. Subject to State and Territory regulations. To comply with these limits, occupants and / or luggage may need to be restricted to not exceed the GCM and GVM limits. For further details regarding passenger and luggage restrictions, please consult your authorized Ford Dealer and / or refer to the Owner’s Manual.
16. Towing equipment, including towbar, not currently available—expected for sale between June-September 2024.
17. Regular Production Options are available at additional cost and must be ordered before vehicle is manufactured.
Key Features
Engine & Transmission
- 2.0L EcoBlue Diesel Engine with eight-speed automatic transmission
- Maximum Power: 125kW
- Maximum Torque: 390Nm
Exterior Dimensions (mm)
- Overall Length: 5050
- Overall Width with mirrors: 2275
- Overall Width with folded back mirrors: 2148
- Overall Height at Kerb Weight4: 1963
- Wheelbase: 3100
- Front of vehicle to front wheel centre: 958
- Rear of vehicle to rear wheel centre: 992
- Width - Side Door Opening: 1030
- Height - Side Door Opening: 1301
- Width - Rear Door Opening: 1400
- Height - Rear Door Opening: 1314
Cargo Dimensions (mm)1
- Width - Load Space Between Wheel Arches: 1392
- Height - Load Space Floor to Roof: 1433
- Height - Rear Loading Height2: 531 - 585
- Length - Load Space Maximum (Up to Bulkhead): 2602
- Length - Load Space Maximum (includes Load Through Hatch): 3050
- Maximum Load Volume (with Bulkhead) (cu.m)3: 5.8
Vehicle Masses (kg)
- Axle Plated Mass (Front / Rear): 1600 / 1900
- Gross Combined Mass: 5725
- Gross Vehicle Mass: 3225
- Maximum Kerb Weight4: 1956
- Maximum Payload5: 1269
Wheels & Tyres
- 16-inch Steel Road Wheels with Wheel Covers
- 16-inch Spare Wheel
Exterior Lighting
- Automatic Headlights
- Automatic High Beam Control
- Daytime Running Lights
- LED Headlights
- Rear Fog Lamps
Stowage & Carrying
- Full Width Metal Bulkhead with Window and Load-Through Hatch
- Kerbside Load Door
- Load Area Protection Kit – Full Height Walls & Moulded Floor
- Load Area Tie Down Loops (6)
- Rear Twin Barn Door with Window (180 degree opening)
- Ultra Bright LED Load Area Compartment Lights
Comfort & Convenience
- 3 seats: Single Driver and Dual Passenger Seat
- 8-Way Driver Seat Manual Adjustment
- Driver and Passenger (Outboard) Heated Front Seats
- Keyless Start
Audio & Communications
- 13-inch Landscape Colour Multi-Function Touchscreen
- 12-inch Driver Cluster with 7-inch Colour Digital Instrument Cluster with Configurable Display
- SYNC® 46 with Voice-Activated Controls
- Embedded Modem compatible with FordPass7
- Built-In Satellite Navigation with one year of Connected Navigation Services included8
- Wireless Apple CarPlayTM & Android AutoTM9
- Wireless Charging10
Driver Assistance11
- Adaptive Cruise Control12
- Blind Spot Monitoring System with Rear Cross Traffic Alert
- Exit Warning
- Hill Launch Assist
- Lane Keeping Aid with Lane Departure Warning
- Pre-Collision Assist with Autonomous Emergency Braking (AEB) and Intersection Assist13
- Front and Rear Sensors
- Rear View Camera - 180 Degree Split View
- Reverse Brake Assist14
Towing
- 2,500kg Maximum Braked Towing Capacity15,16
- Towing equipment, including towbar, not currently available—expected for sale between June-September 2024
Regular Production Options17
- Dual Side Load Doors (No Windows)
- Prestige Paint
- Special Vehicle Options (SVO) Paint
Disclaimer
This is an estimated drive away price only and is not intended as a formal quotation or offer. For a confirmed drive away price quotation and to check stock availability, please contact your Ford Dealer. The estimated drive away price is based on a vehicle being garaged in the postcode listed and on the owner being a 'rating one' driver aged 40 with a good driving record. The estimated drive away price includes, 12 months registration, 12 months compulsory third party insurance (CTP), an estimated Dealer delivery charge, stamp duty and other applicable statutory charges. Your actual drive away price may differ depending on your individual circumstances, choice of insurer, options and accessories selected. Statutory charges are current on the day you are using this build and price tool. Please consult with an authorised Ford dealer for the most up to date information about features, specifications, prices, optional equipment and availability before you decide to place an order.
